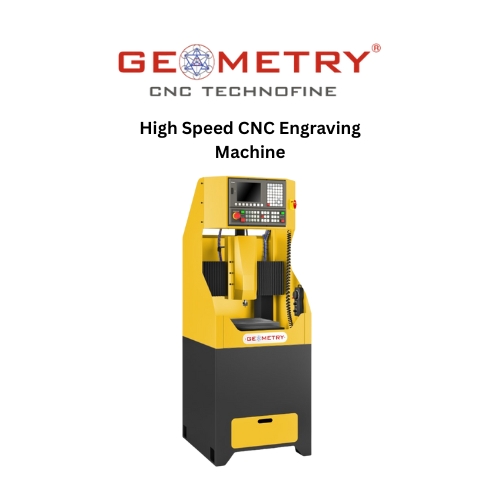

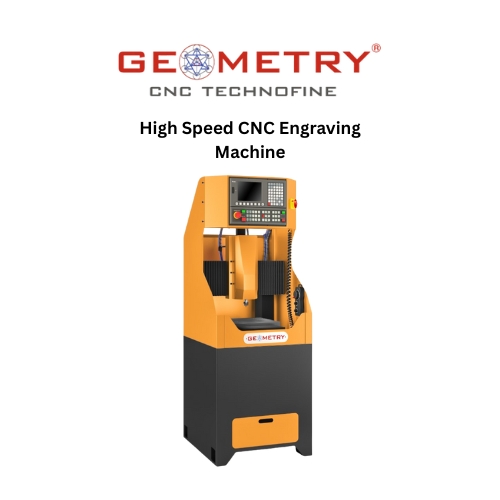

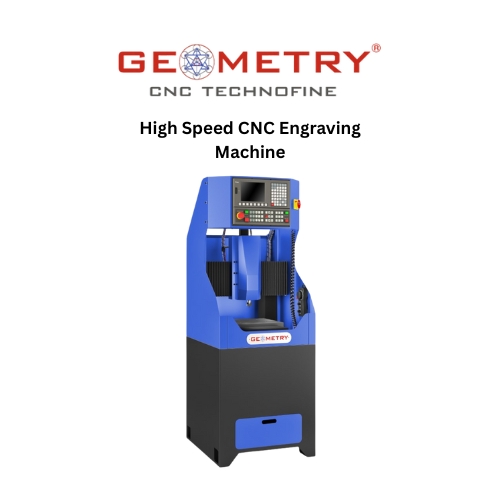

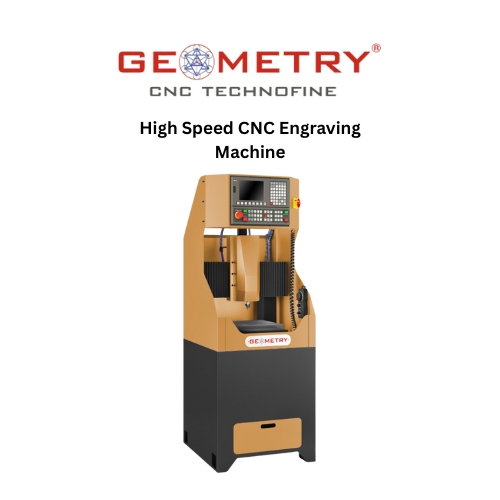

High Speed CNC Engraving Machine

Details: GDE HP 300L Table Size (Clamping Area): 350 × 350 mm Working Area (X × Y × Z): 500 × 500 × 150 mm T-Slot Size: 14 mm Spindle Centre Distance: 75 mm Rapid Feed: 15000 mm/min Cutting Feed: 10000 mm/min Spindle Power: 2.2 kW Spindle RPM: 24000 Spindle Type: Water Cooled Tool Clamping System: ER-20 Max Tool Diameter: 12 mm Positioning Accuracy: 8 micron Position Repeatability: 5 micron Axis Guide System: 20 mm Precision Linear Guideways Axis Drive System: 25 mm Ground Ballscrew Axis Motors: Absolute Servo Motor CNC System: Delta / LNC CNC Controller Spindle Drive: Sensorless Vector Control USB Connection: Yes LAN Connection: Yes Job Size Measurement: Yes Break Point Restart: Yes Power Cut Restart: Yes Feed Override: Yes Synchronous Interpolation: Yes 4th Axis Loop System: Yes MPG Handwheel: Yes Work Co-ordinate: G54 to G59 Square Zero Offset: Yes Round Zero Offset: Yes Maximum Job Weight: 150 kg Machine Weight: 850 kg Machine Dimensions: 450 × 800 × 1850 mm Operating Temperature: 20 – 35 °C
