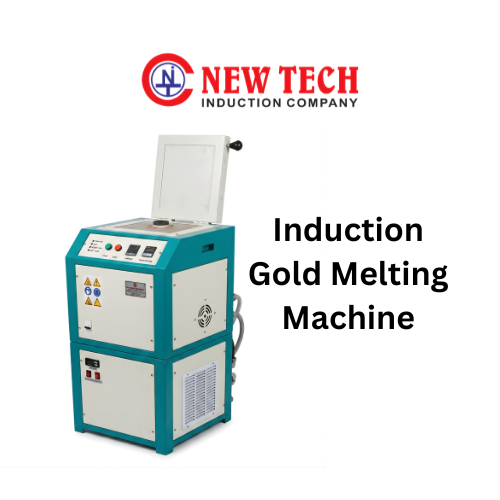

Induction Gold Melting Machine

Technical Specification Rated Voltage : 230 V AC 50 HZ Electrical Installation : Single Phase Rated Power : 3.5 KW to 5 KW Crucible Capacity : 500 gm to 2 KG Crucible Material : Graphite Maximum Temperature : 1200°C Temp. Measurement : K Type Melting Time : 5 – 10 Min Water Cooling System : Chilling Unit Water Pressure : 2 Bar Cooling Water Temperature : 20°C – 30°C Water Flow : 15 LPM Net Weight (with Chilling Unit) : 80 KG Dimensions (mm) – L × B × H Induction Panel : 560 × 535 × 535 Chilling Unit : 510 × 560 × 485 Features Solid State IGBT Technology Perfect Homogenous of Alloys Easy & Quiet Operation Ideal for Melting Gold & Silver Less Power Consumption Increased Productivity Low Maintenance Trip & Failure Display Environment Friendly Operation Compact Design Lift & Pour System Automatic Power & Temp. Control Application Jewellery Work Shop Gold / Silver Casting Gold / Silver Refining Hall Marking Centers Bullion Chain & Bangle Making Retail Showrooms Lab & Research Institute
